Axoguard Nerve Protector®

Axoguard Nerve Protector is the only small intestine submucosa (SIS) implant designed to protect injured and compressed nerves up to 40 mm.

Barrier to soft tissue attachments1

protector innovations

  • Provides a protective barrier to separate the nerve from the surrounding tissues.1
  • Minimizes the potential for soft tissue attachments to allow the nerve to glide.1
  • Vascularizes and remodels into the patient’s own tissue.1
  • Available in a variety of lengths and diameters for intra-operative versatility.

learn more

the importance of biomaterials

In a pre-clinical study conducted to evaluate host tissue response, porcine small intestine submucosa (SIS, Axoguard Nerve Connector) performed significantly better than cross-linked bovine collagen type I (CLC, Integra NeuraGen®) in all outcomes and categories.

Specifically, the study provided evidence that SIS had increased levels of M2 (pro-healing) macrophages which are indicative of a remodeling response, while CLC had increased levels of M1 (pro-inflammatory) macrophages indicative of a chronic inflammatory response.2,3

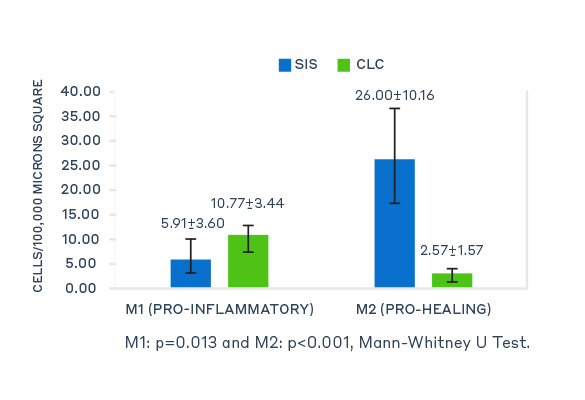

M1 and M2 Macrophage Distribution

Host Response

#1

U.S. market leader*

in off-the-shelf nerve reconstruction solutions.

6 mos

to remodel into protective layer.1

remodels and vascularizes

to minimize potential for soft tissue attachments.

indications for use

INDICATIONS FOR USE: Axoguard Nerve Protector is indicated for the repair of peripheral nerve injuries where there is no gap. The device is supplied sterile and is intended for one-time use.

CONTRAINDICATIONS: This device is derived from porcine source and should not be used for patients with known sensitivity to porcine material.



ordering information

Code Dimensions
AG0220 2 mm x 20 mm
AG0320 3.5 mm x 20 mm
AG0520 5 mm x 20 mm
AG0720 7 mm x 20 mm
AG1020 10 mm x 20 mm
Code Dimensions
AG0340 3.5 mm x 40 mm
AG0540 5 mm x 40 mm
AG0740 7 mm x 40 mm
AG1040 10 mm x 40 mm

connect with a nerve rep

There’s only a short form between you and our nerve product team who can help you get more information about our nerve repair solutions.

references

  1. Kokkalis ZT, et al. Assessment of processed porcine extracellular matrix as a protective barrier in a rabbit nerve wrap model. J Reconstr Microsurg. Jan 2011;27(1):19-28.
  2. Weigert A, et al. Redox-signals and macrophage biology. Mol Aspects Med. Oct 2018;63:70-87.
  3. Zhukauskas R, et al. A comparative study of porcine small intestine submucosa and cross-linked bovine type I collagen as a nerve conduit. J Hand Surg Glob Online. Jul 2021; in press.
